Featured CypCut manuals

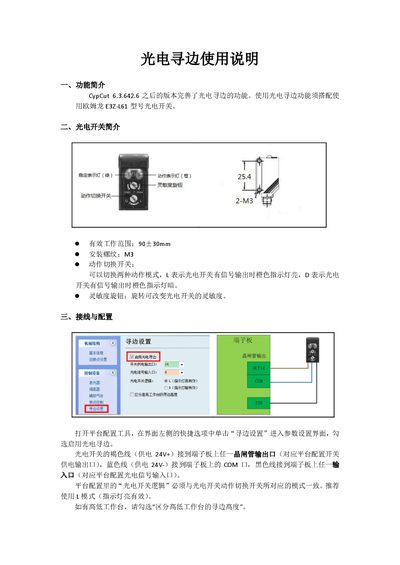

CypCut 6.3.64 2.6 Photointerrupter Edge Detection User Manual
This manual describes the photointerrupter edge‑detection function introduced in CypCut 6.3.64 2.6. The feature works with an Omron E3Z‑L61 photointerrupter and provides both single‑point and three‑point edge‑finding modes.
The guide covers the photointerrupter specifications, wiring connections, configuration steps in the platform tool, parameter settings such as positioning speeds and offset values, and detailed procedures for performing edge detection, along with important safety and setup considerations. This manual is written in Chinese.
Covers: Function Overview · Photointerrupter Description · Wiring and Configuration · Edge‑Detection Parameter Settings · Single‑Point Edge Procedure · Three‑Point Edge Procedure
CypCut 6.3.64 Capacitive Edge Detection User Manual
The capacitive edge detection function in CypCut version 6.3.64 improves edge‑finding accuracy by avoiding the influence of rack teeth. It requires a controller V3.0.3072 or later; earlier V2.0 controllers are not supported.
The guide describes how to enable the feature, set key parameters such as detection speed and steel‑plate dimensions, unlock advanced options for rack‑avoidance, and perform both single‑point and three‑point edge‑detection processes. Safety and setup precautions are also provided. This manual is written in Chinese.
Covers: Feature Overview · Configuration · Capacitive Edge Detection Parameter Description · Advanced Parameter Unlock · Single‑Point Edge Detection Process · Three‑Point Edge Detection Process
Latest CypCut manuals
CypCut 6.3.64 2.6 Photointerrupter Edge Detection User Manual
User Manual 4 pages · 663 KB · ZHInstructions for using the photointerrupter edge‑detection feature in CypCut version 6.3.64 2.6, including wiring, parameters and safety notes.
CypCut 6.3.64 Capacitive Edge Detection User Manual
User Manual 4 pages · 493 KB · ZHThis manual explains how to use the capacitive edge detection feature in CypCut 6.3.64, covering configuration, parameters, and single‑ and three‑point…
