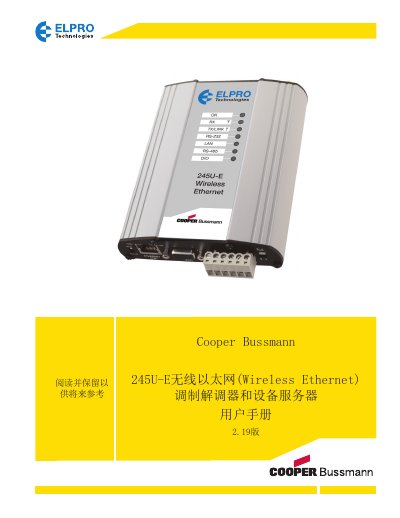

User manual for the Cooper Bussmann 245U-E wireless Ethernet modem and device server, covering installation, configuration, operation and specifications.
The manual provides detailed instructions for installing, configuring, and operating the Cooper Bussmann 245U-E wireless Ethernet modem and device server. It includes safety notices, FCC and CMITT compliance information, and guidelines for antenna and power‑line setup.
Operational sections cover network topology options (access point, client, bridge, router), wireless channel selection, security settings, serial port configuration, Modbus gateway functions, VLAN support, and diagnostic tools such as channel utilization and throughput testing. This manual is written in Chinese.
| Frequency (2.4 GHz band) | 2.412 – 2.472 GHz |
|---|---|
| Frequency (5 GHz band) | 5.150 – 5.825 GHz |
| Transmit Power | 15 – 400 mW (depending on data rate and region) |
| Data Rate | 1 – 108 Mbps (2.4 GHz) / 6 – 108 Mbps (5 GHz) |
| Ethernet Interface | 10/100 Base‑T RJ45 |
A minimum distance of 20 cm must be maintained between the antenna and any person.
No, the 245U‑E is not suitable for explosive environments without additional protection.
