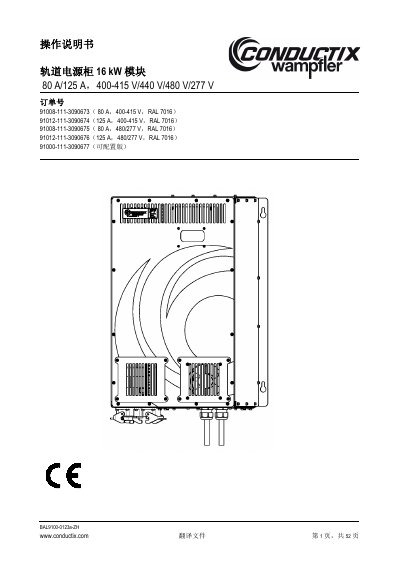

Conductix-Wampfler BAL9100 Rail Power Cabinet Operating Instructions

This manual covers the installation, operation, maintenance, and safety procedures for the Conductix-Wampfler BAL9100 16 kW rail power cabinet.

Brand: Conductix-Wampfler
Document type: User Manual
Language: Chinese
Pages: 52
File format: PDF
File size: 1.3 MB
Published: 16 October, 2026
Updated: 16 October, 2026
Model: BAL9100
MD5 checksum: A2466449BE652D83157C45C72EA0D307
PDF: Conductix-Wampfler BAL9100 Rail Power Cabinet Operating Instructions PDF

About this manual

The document is an operating manual for the Conductix-Wampfler BAL9100 rail power cabinet (80 A/125 A). It provides detailed instructions on installation, commissioning, startup, operation, and shutdown procedures. The device converts input voltage to a constant 20 kHz sinusoidal current for IPT systems.

The manual includes technical specifications such as electrical data, physical dimensions, environmental requirements, and protection functions. It also covers troubleshooting via LED indicators and error codes, maintenance guidelines, and disposal instructions. This manual is written in Chinese.

What's inside

General Recommendations
Technical Description
Appearance
Technical Data
Control Panel Hardware
Fuses
Installation
Commissioning
Startup and Operation
Fault Diagnosis

Specifications

Output Power (Continuous)	16 kW
Output Frequency	20 kHz
Peak Power	137% (22 kW)
Output Current Options	80 A or 125 A
Nominal Output Voltage (80A)	560 - 665 V rms
Rated Load Efficiency	94%

Frequently asked questions

What is the continuous output power of this unit?

The continuous output power is 16 kW.

At what frequency does the rail power cabinet operate?

It converts input voltage to a constant sinusoidal current at 20 kHz.

Who is authorized to perform installation and maintenance?

Only qualified personnel must execute electrical installation, commissioning, repair, and disassembly.
