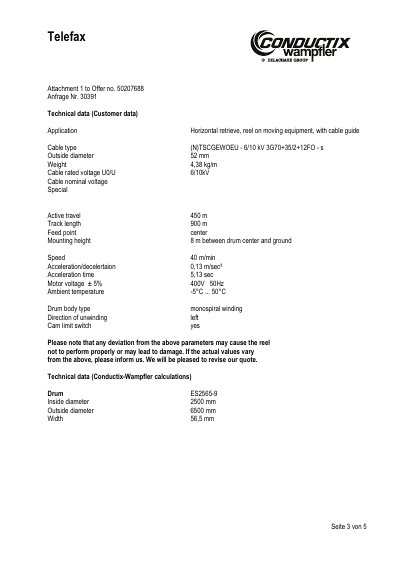

This document describes a horizontal retrieve, reel on moving equipment with cable guide. The cable type is (N)TSCGEWOEU-6/10 kV 3G70+35/2+12FO-s, with an outside diameter of 52mm and a weight of 4.38kg/m. The cable is rated voltage U0/U 6/10kV and has a special active travel of 450m. The track length is 900m and the feed point is in the center. The mounting height is 8m between drum center and ground. The speed is 40m/min with an acceleration/deceleration of 0.13m/sec² and an acceleration time of 5.13 sec. The motor voltage is ± 5% 400V 50Hz. The ambient temperature ranges from -5°C to 50°C. The drum body type is monospiral winding with a left unwinding direction. It has a cam limit switch.
This document provides technical specifications for the Conductix-Wampfler ES2565-9-K201.3/160/10 cable reel system. It details the application parameters, including cable type, outside diameter, weight, and rated voltage. The system is designed for horizontal retrieval on moving equipment with a cable guide.
| Cable rated voltage U0/U | 6/10kV |
|---|---|
| Cable nominal voltage | 450m |
| Outside diameter | 52mm |
| Total number of windings | 36 |
| Max. current load at 100% Duty | 315A |
| Motor Power output | 4,00 kW |
| Motor Voltage | 400V 50Hz |
| Protection grade (Drum) | IP 55 |
| Voltage rating (Slip ring) | 10kV |
| Total weight without cable | 2650 kg |
The maximum current load at 100% duty is 315A for the continuous rotating slip ring.
The motor has a power output of 4.00 kW.
The drum has a protection grade of IP 55.
