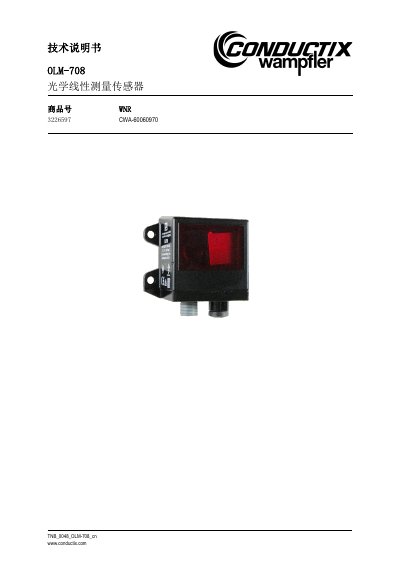

Technical instructions for the Conductix-Wampfler OLM-708 optical linear measurement sensor, covering installation, debugging, maintenance, and troubleshooting.
This document is a technical instruction manual for the Conductix-Wampfler OLM-708, an optical sensor used to read position data from barcode strips in industrial transport systems. It provides essential safety information, user guidelines, and instructions on how to properly use, install, and maintain the device. This manual is written in Chinese.
| Light Source | LED, visible red light |
|---|---|
| Lifespan | 100.000 h |
| Distance to Barcode Strip | 100 mm ± 20 mm |
| Resolution | 1 mm |
| Output Rate | 5 ms |
| Power Supply Voltage | 10 ...30 V DC |
| Weight | approx. 260 g |
| Dimensions (W x H x D) | 74.4 x 69.4 x 42 mm |
| Protection Class | IP65 (EN60529) |
The device operates between -30 °C and +60 °C.
It occurs when the ambient temperature is outside the specified range or during warm-up if the temperature is ≤ –20 °C.
Clean or replace the barcode strip.
