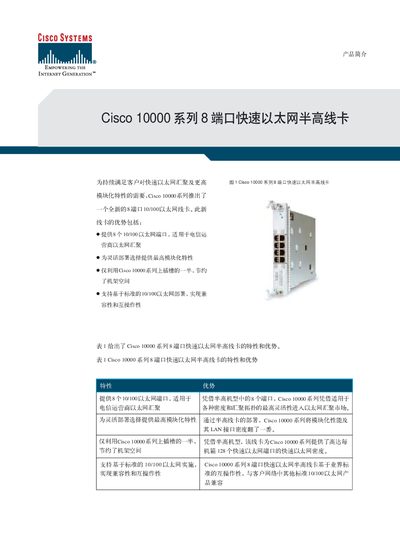

The Cisco 10000 Series 8‑Port Half‑Height Ethernet Line Card manual details hardware specs, environmental limits, and installation requirements.
This manual provides comprehensive information for the Cisco 10000 Series 8‑Port Half‑Height Ethernet Line Card, including hardware features, Ethernet capabilities, software functions, environmental specifications, physical dimensions, LED indicators, network management options, and regulatory approvals. It also lists ordering information and required carrier cards for installation.
The document is intended for network engineers and system integrators who need to configure, install, and maintain the line card within Cisco 10008 or 10005 chassis, ensuring compatibility with Cisco IOS versions and proper power budgeting. This manual is written in Chinese.
| Number of Ethernet ports | 8 (10/100) |
|---|---|
| Maximum frame size | 9180 bytes |
| CAM entries per port | 512 |
| Receive packet memory | 16 MB |
| Power consumption | 15.98 W |
| Physical dimensions (H × W × D) | 7.8 in × 1.3 in × 11 in |
| Weight | 21 lb (0.9 kg) |
| Rated operating temperature | 41 °F to 104 °F (5 °C to 40 °C) |
The line card provides eight 10/100 Ethernet ports.
The device consumes 15.98 W of power.
Rated temperature is 41 °F to 104 °F (5 °C to 40 °C); short‑term range is 23 °F to 131 °F (-5 °C to 55 °C).
The line card uses RJ‑45 connectors with Category‑5 unshielded twisted pair (UTP) cabling.
