The Cisco 7609-S router is a high-performance router designed for telecom operator networks or large enterprise network backbones. It offers high reliability, availability, and rack density, supporting advanced WAN and MAN solutions.
The Cisco 7609‑S chassis is designed for service‑provider edge and large‑enterprise backbone networks, offering high performance, flexibility, high availability and reliability. It supports a wide range of applications such as WAN aggregation, MPLS PE, and metro‑Ethernet access.

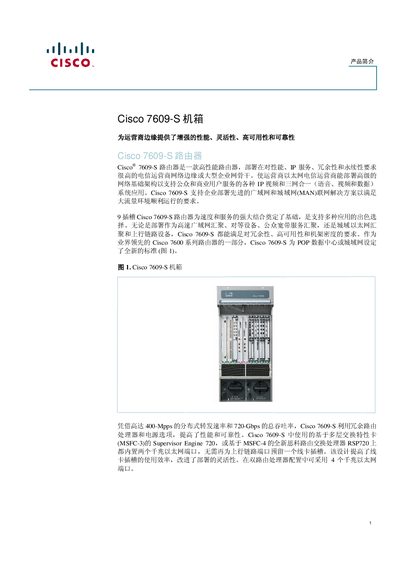

The chassis measures 36.75 × 17.2 × 20.7 inches, fits 21 RU, and provides nine configurable interface slots with up to 750 W per slot. Power options include 4000 W and 6000 W AC or DC supplies, and the system features a high‑speed 5‑speed fan module, redundant power and fan units, and compliance with NEBS Level 3 and multiple safety standards. This manual is written in Chinese.
| Rack Units | 21 RU (36.75 inches) |
|---|---|
| Interface slots | 9 configurable slots |
| Total throughput | 720 Gbps |
| Distributed forwarding rate | up to 400 Mpps |
| Power per slot | 750 W |
| Dimensions (H × W × D) | 36.75 × 17.2 × 20.7 inches |
| Weight (chassis only) | 121 lb (54.9 kg) |
| Weight (full configuration) | 270 lb (122.5 kg) |
| Operating temperature | 32‑104 °F (0‑40 °C) |
| MTBF | 7 years |
The chassis provides a total throughput of 720 Gbps.
It has nine configurable interface slots.
The chassis supports 4000 W and 6000 W AC or DC power supplies.
