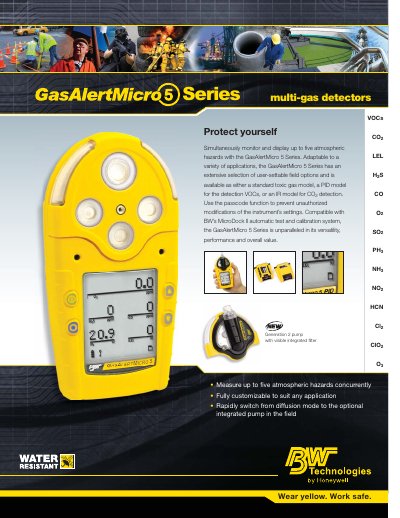

Overview of the BW Technologies GasAlertMicro 5 Series multi-gas detector, available in toxic/electrochemical, PID, and IR models for various industrial…
The GasAlertMicro 5 Series is a customizable multi-gas detector capable of measuring up to five atmospheric hazards concurrently. It features an optional integrated pump for remote sampling and includes a large display with raised buttons for use in high-noise or gloved-hand environments.
Available in three configurations, the series detects toxic gases (H2S, CO, O2, etc.), Volatile Organic Compounds (VOCs) via PID sensors, or Carbon Dioxide (CO2) via IR sensors. The device supports multiple charging options and is compatible with the MicroDock II automated test and calibration system.
| Size | 5.7 x 2.9 x 1.5 in. |
|---|---|
| Weight | 13.1 oz. |
| Operating Temperature (Standard) | -4 to +122°F / -20 to +50°C |
| Operating Temperature (PID) | 14 to +104°F / -10 to +40°C |
| Audible Alarm Level | 95 dB |
| Battery Life (Standard) | 20 hours |
| Battery Life (PID/IR) | 15 hours |
The series is available as a standard toxic gas model, a PID model for VOC detection, or an IR model for CO2 detection.
Yes, both diffusion and pumped configurations are compatible with the MicroDock II automated bump test and calibration system.
Yes, it features raised buttons designed for easy use with gloves.
