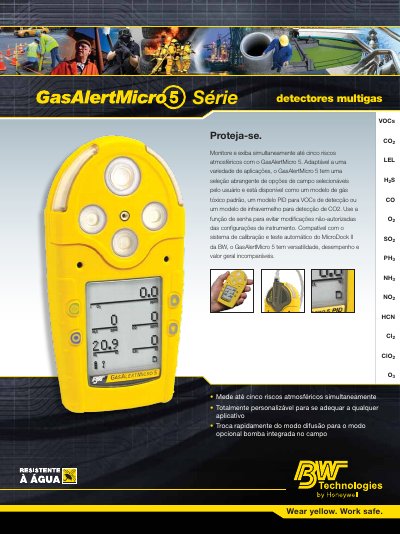

Product leaflet for the BW Technologies GasAlertMicro 5, a customizable multi-gas detector available in toxic, PID, and IR models.
The BW Technologies GasAlertMicro 5 is a multi-gas detector capable of monitoring up to five atmospheric hazards simultaneously. It is fully customizable and available in three specific models: a toxic/electrochemical model, a PID model for VOCs, and an IR model for CO2 detection. The device features a large, easy-to-read display, audible, visual, and vibratory alarms, and is compatible with the MicroDock II calibration and testing system. This manual is written in Portuguese.
| Dimensions | 14.5 x 7.4 x 3.8 cm / 5.7 x 2.9 x 1.5 in |
|---|---|
| Weight | 370 g / 13.1 oz |
| Operating Temperature (Toxic) | -20 to +50°C / -4 to +122°F |
| Operating Temperature (PID) | -10 to +40°C / -14 to +104°F |
| Alarm Sound Level | 95 dB (typical) |
| Battery Life (PID/IR) | 15 hours |
| Warranty | 2 years total (1 year for specific sensors) |
It detects H2S, CO, O2, SO2, PH3, NH3, NO2, HCN, Cl2, ClO2, O3, and fuels (LEL) in the toxic model; VOCs in the PID model; and CO2 in the IR model.
Yes, it is compatible with the BW MicroDock II calibration and testing system.
Yes, it offers a quick change from diffusion mode to an optional integrated pump mode for remote sampling.
