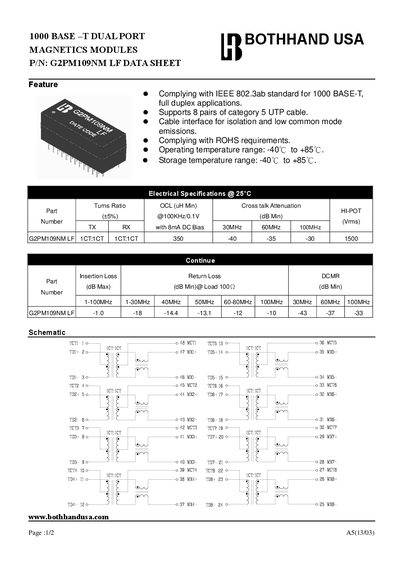

Datasheet for the Bothhand USA G2PM109NM LF 1000BASE‑T dual‑port magnetics module with specs, features and mechanical layout.
The Bothhand USA G2PM109NM LF is a 1000BASE‑T dual‑port magnetics module that complies with the IEEE 802.3ab standard for full‑duplex applications. It supports eight pairs of Category‑5 UTP cable, provides isolation and low common‑mode emissions, and meets RoHS requirements.
The data sheet lists electrical specifications such as a 1:1 turns ratio, insertion loss of –1.0 dB (1‑100 MHz), return loss of –18 dB (1‑100 Ω), and a hi‑pot rating of 1500 Vrms at 30 MHz. Mechanical details include PCB layout and mounting hole dimensions.
| IEEE Standard | 802.3ab (1000BASE‑T full duplex) |
|---|---|
| Supported Cable | 8 pairs of Category‑5 UTP |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Part Number | G2PM109NM LF |
It complies with the IEEE 802.3ab standard for 1000BASE‑T full‑duplex applications.
The module operates from –40 °C up to +85 °C.
The part number is G2PM109NM LF.
