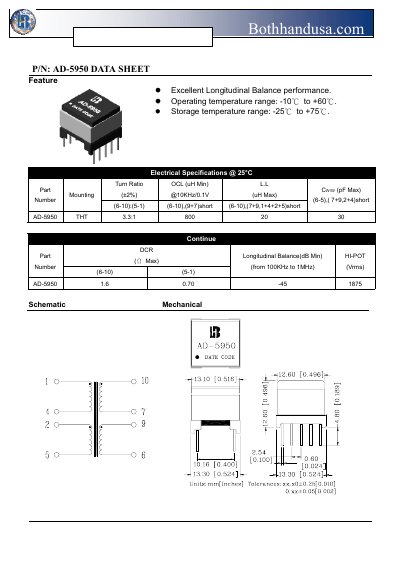

This document is the datasheet of AD-5950, which details the product's features and parameters.
This datasheet presents the technical data for the Dinghao AD-5950 component, highlighting its excellent longitudinal balance performance. It includes key electrical specifications, temperature limits, and mechanical details.
Key specifications such as operating temperature (-10 °C to +60 °C), storage temperature (-25 °C to +75 °C), turn ratio (3.3:1), inductance, DC resistance, longitudinal balance, and hi‑pot rating are listed for design and verification purposes. This manual is written in Chinese.
| Operating temperature range | -10 °C to +60 °C |
|---|---|
| Storage temperature range | -25 °C to +75 °C |
The AD-5950 operates from -10 °C to +60 °C.
The component can be stored between -25 °C and +75 °C.
