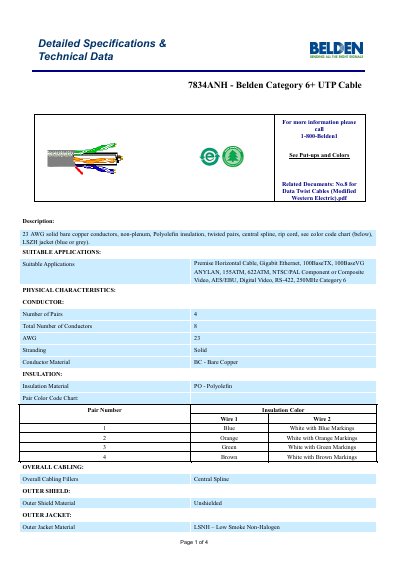

Technical datasheet for Belden 7834A NH Category 6+ UTP cable detailing physical, mechanical, and electrical specifications.
This document provides detailed specifications and technical data for the Belden 7834A NH Category 6+ UTP cable. It describes the cable's physical characteristics, including 23 AWG solid bare copper conductors with polyolefin insulation and a low smoke non-halogen (LSNH) jacket. The cable is designed for premise horizontal cabling applications supporting Gigabit Ethernet and various video and data standards.
| Conductor Material | Bare Copper |
|---|---|
| Insulation Material | Polyolefin |
| Outer Jacket Material | LSNH |
| Overall Nominal Diameter | 6.1 mm |
| Operating Temperature Range | -20℃ To +75℃ |
| Characteristic Impedance | 100 ± 15 Ohms |
| Maximum Intended Operating Voltage | 80 V RMS |
| Suitability | Indoor |
No, the cable is rated for indoor use only.
The maximum recommended pulling tension is 110 N.
Yes, the cable is EU RoHS Compliant.
