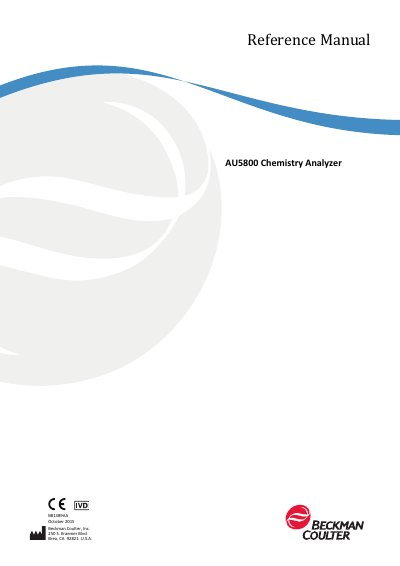

Reference manual for the Beckman Coulter AU5800 Chemistry Analyzer, covering operation, safety, and maintenance procedures.
The Reference Manual provides detailed information on the AU5800 Chemistry Analyzer, including system operation, safety precautions, hazard warnings, and maintenance procedures. It contains revision history, hardware label descriptions, and instructions for proper use of the analyzer.
The manual also specifies sample programming, bar‑code label requirements, and hardware specifications such as label dimensions and bar‑code standards. Safety sections cover electrical shock, biohazard handling, laser radiation, and moving‑part hazards.
| Supported bar‑code types | NW‑7, CODE 39, CODE 128, ISBT‑CODE 128, Interleaved 2 of 5 |
|---|---|
| Maximum bar‑code digits | 26 digits |
| Minimum bar‑code height | ≥ 10 mm |
Read all product manuals, consult Beckman Coulter trained personnel, follow all product labels, wear appropriate PPE, and ensure the system is properly grounded before use.
The AU5800 accepts NW‑7 (JIS‑X‑0506), CODE 39 (JIS‑X‑0503), CODE 128 (JIS‑X‑0504), ISBT‑CODE 128, and Interleaved 2 of 5 (JIS‑X‑0502).
Turn off the main breaker located on the left side of the analyzer immediately, then wipe up the spill after power is removed.
