The Beacon Global Technology BT-EN-DNPS-S gateway provides EtherNet/IP and DNP 3.0 bidirectional data exchange with an Ethernet port and two configurable…
The BT-EN-DNPS-S is a compact DIN‑rail‑mountable gateway that bridges EtherNet/IP networks with DNP 3.0 serial devices. It offers a 20,000‑byte data exchange area, up to 10 Ethernet/IP clients and servers, and two serial ports that can be configured as master or slave for up to 50 IED devices each.

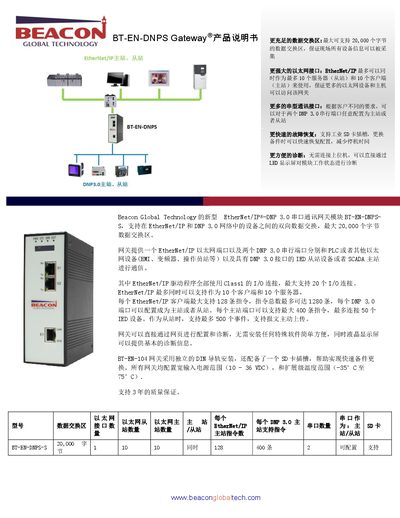

Configuration is performed via a built‑in web interface, and status can be monitored on a 128×32 OLED display and LED indicators. The unit operates from a wide input voltage range (10‑36 VDC) and is rated for industrial temperature and humidity conditions. This manual is written in Chinese.
| Power supply nominal voltage | 24 VDC |
|---|---|
| Power supply range | 10 VDC – 36 VDC |
| Power consumption | 3 W (24 VDC @ 125 mA) |
| Operating temperature | -35 °C to 75 °C |
| Storage temperature | -40 °C to 80 °C |
| Relative humidity | 5 % to 95 % RH (no condensation) |
| Dimensions (H×W×D) | 2.13 in × 4.18 in × 5.72 in (54.2 mm × 106.1 mm × 145.4 mm) |
| Weight | 600 g |
| Ethernet port speed | 10/100 Mbit half‑duplex RJ45 |
| Serial port isolation rating | 2500 Vrms |
| Maximum data exchange area | 20,000 bytes |
| Maximum I/O connections | 20 |
| Maximum Ethernet/IP clients | 10 |
| Maximum commands per client | 128 |
| Maximum commands per DNP port (master) | 400 |
The gateway can handle up to 10 Ethernet/IP clients and up to 10 Ethernet/IP servers simultaneously.
The data exchange area can store up to 20,000 bytes of data.
It operates from –35 °C up to 75 °C.
