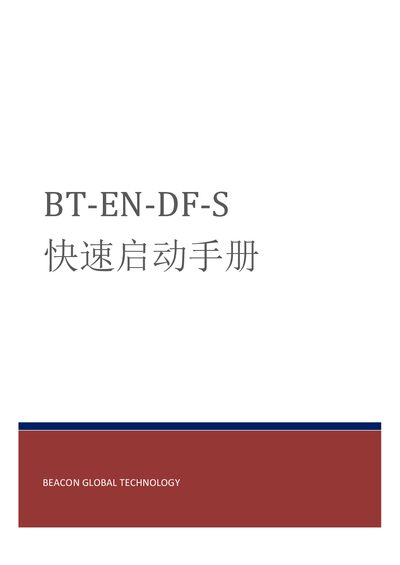

Quick start guide for the Beacon Global Technology BT-EN-DF-S EtherNet/IP‑DF1 communication module.
This guide introduces the BT-EN-DF-S series module, an EtherNet/IP‑DF1 communication device that can exchange up to 8000 bytes of data between Ethernet and DF1 serial networks. It describes the module’s hardware interfaces, default settings, and supported Rockwell PLC families.
The manual walks the user through initial configuration via a web browser, setting the IP address, logging in, and configuring the module as an EtherNet/IP server, client, or DF1 master. Example projects show data exchange between Logix5000 and Logix500 PLCs, and contact information is provided for technical support. This manual is written in Chinese.
| Maximum data exchange area | 8000 bytes |
|---|---|
| Default Ethernet IP address | 192.168.0.200 |
| Number of internal 16‑bit registers | 1000 |
| INT inputs per Class 1 connection | 248 |
| Supported Rockwell PLC series | 1756, 1769, 1746, PLC‑2, PLC‑5, SLC500, Micrologix, PowerFlex, E300, PowerMonitor, RSView_SE |
Set your PC’s IP address to the same subnet (e.g., 192.168.0.177), then enter 192.168.0.200 in a web browser to access the configuration page.
Log in to the web interface, click the IP address field, and modify the address as needed.
The module has 1000 16‑bit internal registers.
Each Class 1 connection provides 248 INT inputs and 248 INT outputs.
