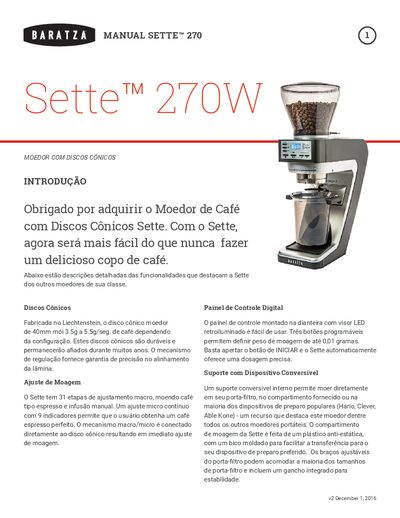

The manual provides safety information, setup, operation, cleaning, maintenance and warranty details for the Baratza Sette 270W coffee grinder.
The Sette™ 270W coffee grinder from Baratza features 40 mm conical burrs, 31 macro grind steps and a micro‑adjustment with nine indicators, allowing precise dosing down to 0.01 g. The digital front panel with LED display lets you select preset weights or program custom doses.
The guide covers safety warnings, part identification, initial setup, funnel installation, conversion arm adjustment, grind‑size configuration, weight‑based grinding, cleaning procedures, automatic cleaning tablets, recalibration, and warranty information. This manual is written in Portuguese.
| Burr size | 40 mm |
|---|---|
| Grinding rate | 3.5 g–5.5 g per second |
| Macro adjustment steps | 31 |
| Micro adjustment | continuous with 9 indicators |
| Weight precision | 0.01 g |
| Maximum daily throughput | 2 lb (1 kg) |
| Maximum batch size | 150 g |
Wash the grain compartment, funnel and lid in warm soapy water, rinse and dry; never wash the burrs. For deeper cleaning use the recommended cleaning tablets.
Use the macro adjustment for large changes (1‑31) and the micro continuous adjustment with nine indicators for fine tuning; make adjustments while the motor is running.
Baratza offers a limited one‑year warranty (or 25 hours of cumulative use) covering material and workmanship defects.
Press a preset button, use the up/down arrows to set the desired weight, hold the button for three seconds to store; each button defaults to 18 g, 25 g, or 35 g.
