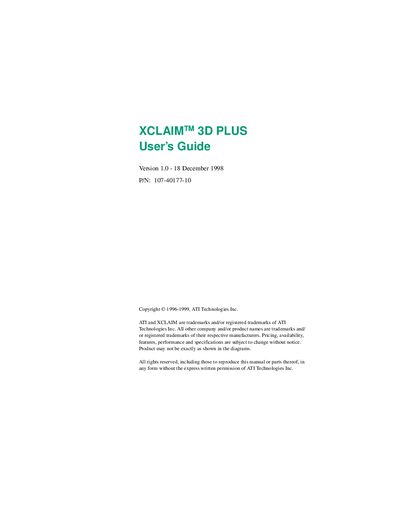

ATI XCLAIM 3D PLUS User's Guide

This user guide covers installation, software setup, multimedia features, and troubleshooting for the ATI XCLAIM 3D PLUS graphics accelerator card for Mac OS.

Brand: ATI
Category: Graphics
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 800 KB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 8B6C2FF95F01F639CFBB550C23AE3844
PDF: ATI XCLAIM 3D PLUS User's Guide PDF

About this manual

The ATI XCLAIM 3D PLUS is a graphics accelerator designed for PCI-based Mac OS computers, offering five integrated functions: QuickDraw 3D acceleration, QuickDraw acceleration, QuickTime playback acceleration, Mac2TV video output, and Digital Flat Panel (DFP) support. The guide provides instructions on system requirements, hardware installation, and software configuration.

What's inside

Getting Started
Installing Your Hardware
Installing Your Software
Multimedia Features
Troubleshooting Tips
Specifications
Compliance Information
Glossary

Specifications

Operating System	Mac OS 7.5.5 or later
Memory	8MB
Bus Interface	32-bit PCI
Graphics Chip	ATI RAGE LT PRO
Video Output	NTSC and PAL

Frequently asked questions

Does the XCLAIM 3D PLUS support Mac2TV video output?

Yes, it includes Mac2TV video out enabling big screen presentations, game play and movie output to tape.

What are the minimum system requirements to run the XCLAIM 3D PLUS card?

The card requires a Power Macintosh or compatible computer with a PowerPC processor, Mac OS 7.5.5 or later, and a minimum of 16MB of system memory.

What software versions are required for the XCLAIM 3D PLUS to function?

You must have QuickTime version 2.5 or later and QuickDraw 3D version 1.5.1 or later installed on your system.

What type of connectors are available for the TV output feature?

The TV out feature provides both composite and S-Video connectors for NTSC and PAL output.
