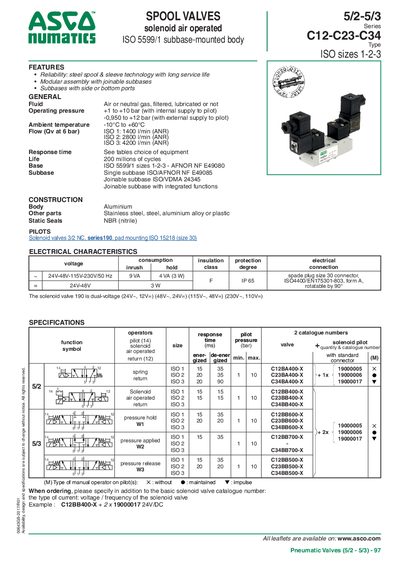

Product leaflet for ASCO 5/2 and 5/3 solenoid air operated spool valves with ISO 5599/1 subbase-mounted bodies, covering features, specifications, and options.
This document details the ASCO Pneumatic Valves (5/2 - 5/3) Series C12-C23-C34, which are solenoid air operated spool valves featuring ISO 5599/1 subbase-mounted bodies. The valves are designed for reliability using steel spool and sleeve technology and offer modular assembly with joinable subbases. They are suitable for fluid air or neutral gas, operating within pressures of +1 to +10 bar (with internal pilot supply) or -0.950 to +12 bar (with external pilot supply).
| Operating pressure (internal pilot) | +1 to +10 bar |
|---|---|
| Operating pressure (external pilot) | -0.950 to +12 bar |
| Ambient temperature | -10°C to +60°C |
| Flow (ISO 1 at 6 bar) | 1400 l/min (ANR) |
| Flow (ISO 2 at 6 bar) | 2800 l/min (ANR) |
| Flow (ISO 3 at 6 bar) | 4200 l/min (ANR) |
| Life | 200 millions of cycles |
| Body material | Aluminium |
| Static Seals | NBR (nitrile) |
The operating pressure is +1 to +10 bar with internal supply to pilot, and -0.950 to +12 bar with external supply to pilot.
The valves have a life of 200 millions of cycles.
