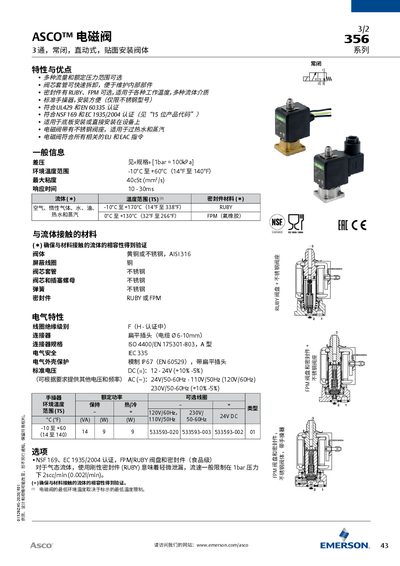

Product leaflet for ASCO 356 series solenoid valves, detailing specifications, electrical characteristics, installation, and maintenance kits.
This document provides a product overview for the ASCO 356 series of normally closed, 3/2 way, direct acting solenoid valves. Key features include a removable valve sleeve for easy maintenance, various seal material options (RUBY and FPM) for different temperature and fluid applications, and compliance with UL429, EN 60335, NSF 169, and EC 1935/2004 standards. The valves are available in brass or stainless steel bodies and can be mounted on a baseplate or directly on equipment. This manual is written in Chinese.
| Valve Type | Normally closed, 3/2 way, direct acting |
|---|---|
| Operating Temperature Range | -10°C to +60°C |
| Max Viscosity | 40cSt |
| Response Time | 10 - 30ms |
| Fluid Temperature Range (Air/Gas/Water/Oil) | -10°C to +170°C |
| Connector Type | Flat plug (cable Ø 6-10mm) |
| Electrical Safety Standard | IEC 335 |
| IP Rating | IP67 |
| Body Material Options | Brass or Stainless Steel (AISI 316) |
The valves are available with RUBY or FPM (fluoro rubber) disc and seals.
Yes, the valves with stainless steel seats are suitable for hot water and steam.
The valves comply with UL429, EN 60335, NSF 169, and EC 1935/2004 certifications.
The valve sleeve can be quickly removed to facilitate maintenance of internal components.
