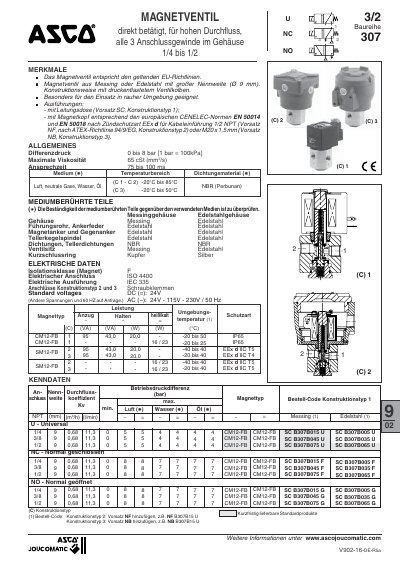

ASCO 307 Series Magnetic Valve Product Leaflet

This document is a technical manual for ascojoucomatic CM12-FB, SC B307B015 U

Brand: ASCO
Category: Other Electronics
Document type: Product Leaflet
Language: German
Pages: 2
File format: PDF
File size: 159 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 25202F6304735B7A5DD65891C937D3DC
PDF: ASCO 307 Series Magnetic Valve Product Leaflet PDF

About this manual

This document provides technical specifications and data for the ASCO 307 series of magnetic valves (Magnetventil). It details the product's suitability for high flow rates and various connection types, including brass and stainless steel housings.

The leaflet lists key technical parameters such as differential pressure, viscosity limits, and response times. It also includes comprehensive tables for electrical data, flow rates, and physical dimensions for different construction types and order codes. This manual is written in German.

What's inside

Merkmale
Allgemeines
Elektrische Daten
KennDaten
Sonderausführungen
Installation
Abmessungen

Specifications

Differential Pressure	0 to 8 bar
Max Viscosity	65 cSt
Standard Voltage DC	24V
Standard Voltage AC	24V - 115V - 230V / 50 Hz
Housing Material	Brass or Stainless Steel
Protection Class	IP65
