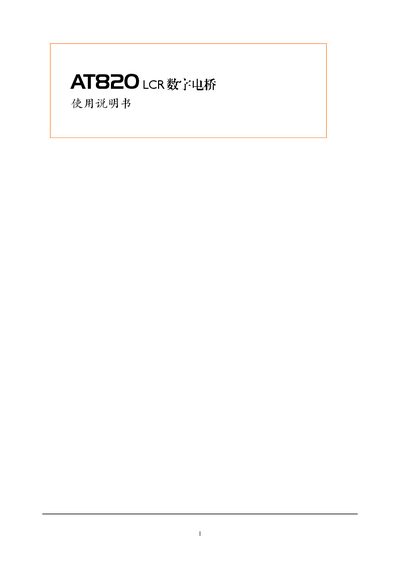

The Applent AT820 LCR Meter User Manual provides installation, operation, safety warnings, specifications, and maintenance information.
This manual covers the installation and setup of the AT820 LCR Meter, including power requirements, fuse replacement, and environmental conditions. It also explains the basic operation, measurement parameters, and calibration procedures.
Additional sections detail safety warnings, warranty terms, technical specifications, and troubleshooting tips, helping users safely and accurately perform inductance, capacitance, resistance, and impedance measurements. This manual is written in Chinese.
| Measurement parameters | L, C, R, Z, D, Q |
|---|---|
| Test frequencies | 100 Hz, 120 Hz, 1 kHz |
| Test voltage level | 0.3 Vrms |
| Basic accuracy | 0.25 % |
| Power consumption | Maximum 10 VA |
| Operating temperature range | 0 °C ~ 55 °C |
| Input voltage | 198 V ~ 252 VAC, 47.5 ~ 52.5 Hz |
| Weight | ≈1.5 kg |
Stop operation immediately, disconnect the power cord, and contact Applent sales for repair to avoid fire or electric shock hazards.
Applent offers a 90‑day exchange period and a three‑year free warranty, after which repairs are charged.
