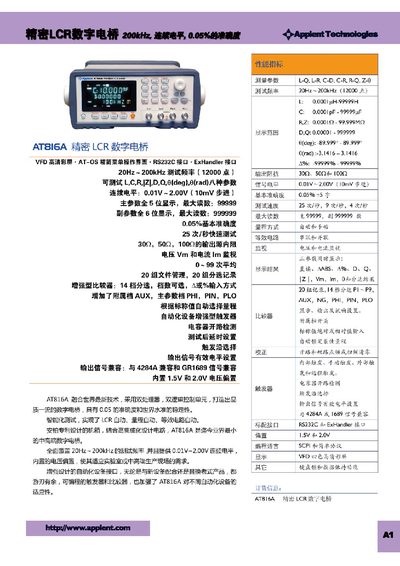

The AT816A is a precision LCR digital bridge offering a frequency range of 20 Hz to 200 kHz and continuous voltage levels from 0.01 V to 2.00 V. It provides automatic range selection, programmable triggers, and SCPI/simple protocol interfaces, making it suitable for laboratory and mid‑range production environments.
The manual describes measurement parameters (L‑Q, L‑R, C‑D, etc.), display formats, record management (20 groups), and detailed settings for comparators, triggers, and output signal levels. It also lists hardware interfaces (RS232C, ExHandler) and compatibility with 4284A and GR1689 signals. This manual is written in Chinese.
| Frequency range | 20 Hz – 200 kHz |
|---|---|
| Continuous voltage level | 0.01 V – 2.00 V (10 mV step) |
| Basic accuracy | 0.05 % |
| Test speed | 25 tests per second |
| Main display digits | 5 digits, max 99999 |
| Sub display digits | 6 digits, max 999999 |
| Output impedance options | 300 Ω, 509 Ω, 1000 Ω |
| Record groups | 20 groups |
It supports test frequencies from 20 Hz up to 200 kHz.
The instrument can manage up to 20 groups of records.
The basic accuracy is 0.05 %.
