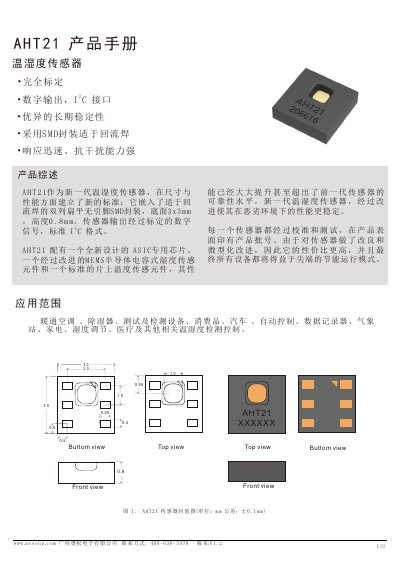

This manual covers the specifications, application information, welding instructions, storage conditions, and recovery procedures for the AOSong AHT21 SMD…
The AOSong AHT21 is a new generation digital output humidity and temperature sensor featuring a 3x3mm x 0.8mm SMD package suitable for reflow soldering. It utilizes an ASIC chip, MEMS capacitive humidity sensing element, and on-chip temperature sensing element to provide stable performance in harsh environments with high long-term stability. This manual is written in Chinese.
| Package Dimensions | 3x3mm, Height 0.8mm |
|---|---|
| Relative Humidity Range | 0-80%RH |
| Interface Type | Two-wire digital interface, standard IC protocol |
The best use temperature for reflow soldering is below 200°C, with a limit of 260°C.
It is recommended to store them in anti-static bags made of metal PET/AL/CPE material.
Dry at 80-85°C and <5%RH for 10 hours, then rehydrate at 20-30°C and >75-85%RH for 12 hours.
