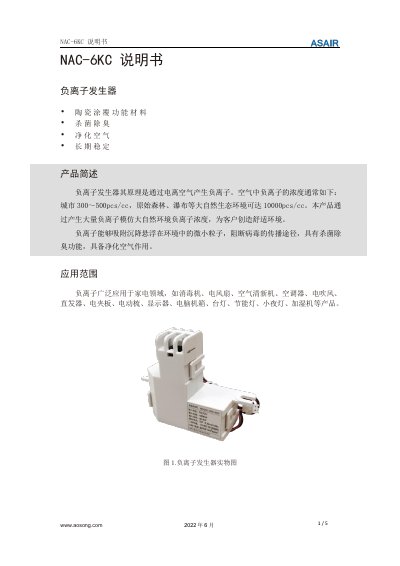

The AOSONG NAC-6KC negative ion generator manual provides product overview, specifications, operation guidelines, and safety warnings.
The NAC-6KC negative ion generator creates high concentrations of negative ions to purify air, eliminate odors, and inhibit microbes. It is intended for use in various home appliances such as fans, air fresheners, air conditioners, hair dryers, and humidifiers.
The manual lists technical parameters (e.g., DC12 V input, ≤30 mA current, DC‑5.5 kV ion output) and outlines important safety precautions, including avoiding contact with internal components, keeping the device away from corrosive gases, and not operating it in high‑humidity or direct sunlight environments. This manual is written in Chinese.
| Rated input voltage | DC12V±1V |
|---|---|
| Rated input current | ≤30 mA |
| Input power | ≤0.5 W |
| Negative ion output voltage | DC‑5.5 kV±0.5 kV |
| Negative ion concentration | ≥5 000 000 pcs/cc (25 °C, 50 %RH @10 cm) |
| Operating temperature | -10 °C to 50 °C |
| Operating humidity | 30 %–80 % RH |
The device is rated for a DC12 V ±1 V input.
Do not touch internal parts with hands or metal, avoid corrosive gases, keep away from water or solvents, stay within rated voltage/current, avoid humidity above 95 %RH, prevent strong impacts, and avoid prolonged direct sunlight.
It generates at least 5 000 000 negative ions per cubic centimeter under standard test conditions.
