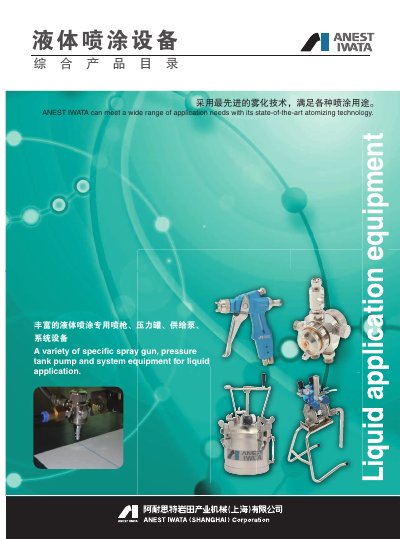

The ANEST IWATA catalog details the TOF‑5B/5RB and TOF‑6B/6RB liquid‑application equipment, including spray guns, pressure tanks, pumps, specifications…
ANEST IWATA offers a range of liquid‑application equipment such as spray guns, pressure tanks and supply pumps for coating water, oil, release agents, adhesives and other liquids. The catalog lists applications from mold release on die‑casting machines to rust‑proofing oil on metal parts and adhesive coating on automotive interiors.
Each series (TOF‑5B/5RB, TOF‑6B/6RB, TOF‑20, TOF‑30) is described with key features, connection sizes, hose options and performance data. Installation dimensional drawings and electrical schematics are provided to aid integration into machines, and safety cautions address strong solvents and food‑related use. This manual is written in Chinese.
| Minimum piston operating air pressure | 0.25 MPa |
|---|---|
| Liquid inlet connection size | G1/8 |
| Hose inner/outer diameter (PHF series) | 8.7–9 mm / 12 mm |
The piston operating air pressure must be above 0.25 MPa.
Yes, because its operating and atomizing air are separated, allowing spraying below 0.25 MPa.
You should consult ANEST IWATA in advance before applying such liquids.
Only the FOG and FOT models may be used for food or medicine applications.
