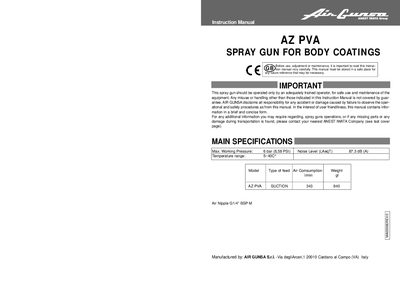

The Anest Iwata AZ PVA spray gun user manual provides safety warnings, installation steps, operation guidelines, maintenance procedures, and a spare parts list.
This manual covers safe operation of the AZ PVA spray gun, emphasizing that only trained operators should use the equipment, that clean dry air must be supplied, and that proper personal protective equipment and ventilation are required. It also lists the main specifications such as maximum working pressure, noise level, and temperature range.
The document details installation instructions, how to adjust spray distance (150‑200 mm), operation tips, cleaning and maintenance after painting, and a comprehensive spare‑parts list with part numbers and descriptions.
| Maximum Working Pressure | 6 bar (8.58 PSI) |
|---|---|
| Noise Level (LAeqT) | 87.3 dB (A) |
| Temperature Range | 5 °C – 40 °C |
Only trained operators should use the gun, work in a well‑ventilated spray booth, avoid ignition sources, wear protective eyewear, gloves, respirator and ear protection, and always release air and fluid pressure before cleaning or servicing.
After painting, pour remaining paint into another container, clean paint passages and the air cap with a small amount of thinner, brush other sections with thinner‑soaked cloth, and fully clean paint passages before disassembly.
Set the spray distance as close as possible within the range of 150 mm to 200 mm (approximately 5.9 in to 7.7 in).
The gun operates at a maximum working pressure of 6 bar (8.58 PSI), has a noise level of 87.3 dB (A), and can be used in temperatures from 5 °C to 40 °C.
