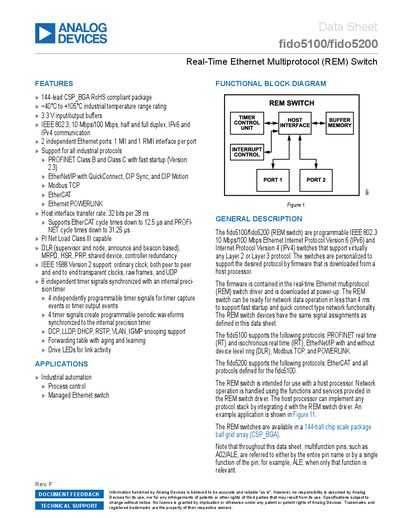

Data sheet for the Analog Devices fido5100/fido5200 REM switch, a programmable IEEE 802.3 Ethernet IP v4/v6 device supporting industrial protocols like…
The Analog Devices fido5100/fido5200 are programmable Real-Time Ethernet Multiprotocol (REM) switches designed for use with a host processor to support virtually any Layer 2 or Layer 3 protocol. These devices operate at 10 Mbps/100 Mbps and are personalized via firmware downloaded from the host, allowing them to be ready for network data operation in less than 4 ms.
| Package Type | 144-lead CSP_BGA |
|---|---|
| Operating Temperature Range (Industrial) | -40°C to +105°C |
| Core Voltage | 1.08 V to 1.32 V |
| I/O Buffers Voltage | 3.3 V |
| Supported Protocols (fido5100) | PROFINET, EtherNet/IP, Modbus TCP, POWERLINK |
| Supported Protocols (fido5200) | EtherCAT and all fido5100 protocols |
| Host Interface Transfer Rate | 32 bits per 28 ns |
The device supports an industrial temperature rating from -40°C to +105°C.
The REM switch can be ready in less than 4 ms to support fast startup and quick connect functionality.
It is available in a 144-ball chip scale package ball grid array (CSP_BGA).
