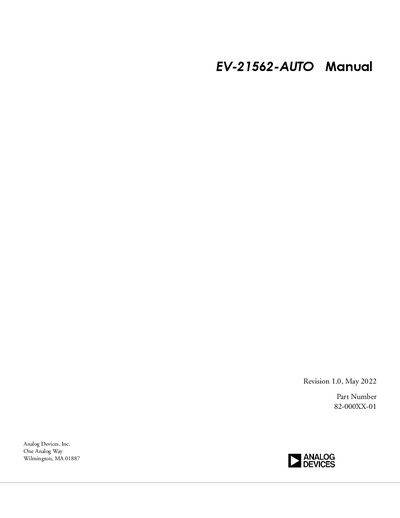

This manual provides instructions for using the Analog Devices EV-21562-AUTO evaluation board, including hardware setup, component configuration, and…
The EV-21562-AUTO is a low-cost audio evaluation board featuring the ADSP-21562 DSP, ADAU1962A DAC, and ADAU1979 ADC. It is designed for laboratory environments and supports 12-channel audio output and 4-channel audio input via 3.5mm connectors.
The manual covers the board's package contents, default configuration, and detailed descriptions of hardware components such as switches, jumpers, LEDs, and connectors. It also provides reference information for the supported integrated circuits and guides users on setting up the debug interface.
| Processor | Analog Devices ADSP-21562 |
|---|---|
| Oscillator Frequency | 25 MHz |
| Flash Memory | 512Mbit |
| DAC | ADAU1962A - 12 Channel |
| ADC | ADAU1979 - Quad |
| Audio Output Channels | 12 |
| Audio Input Channels | 4 |
| Power Supply | 12V @ 1.6 Amps |
It is a low cost Audio evaluation board that features the entry level ADSP-21562 DSP along with Audio DACs and ADCs.
No, the board is designed solely for laboratory environments and is not intended for use as a consumer-end product.
The board provides a JTAG connection via P1 for attaching an emulator, such as the ICE-1000 or ICE-2000.
