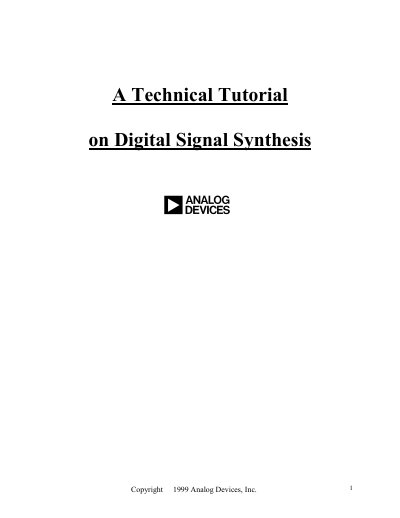

Analog Devices Direct Digital Synthesis Technical Tutorial

About this manual

This tutorial explains the theory of operation, circuit architecture, and tuning equations of direct digital synthesis (DDS). It describes the role of the reference clock, phase accumulator, and programmable tuning word, and shows how DDS can replace traditional analog synthesizers in many applications.\n\nThe document also discusses practical topics such as frequency/phase‑hopping, output spectrum, jitter and phase‑noise considerations, clock‑generator implementations, digital modulation, and system‑level integration, including PCB layout and power‑supply guidelines.

What's inside

• Fundamentals of DDS Technology
• Sampled Output and Aliasing
• Frequency/Phase‑Hopping Capability
• DDS Output Spectrum and Spur Management
• High‑Speed Reference Clock Considerations
• Interfacing to the DDS Output
• DDS as a Clock Generator
• Replacing a PLL with a DDS
• Digital Modulator Applications
• Bench Evaluation and System Integration

Specifications

Frequently asked questions

What determines the output frequency of a DDS?

The output frequency is set by the reference clock frequency and the binary tuning word according to the equation F_OUT = (M·REFCLK)/2^N.

What is the advantage of a phase accumulator in a DDS?

It provides phase‑continuous frequency changes and enables micro‑Hertz tuning resolution without analog loop settling time.
