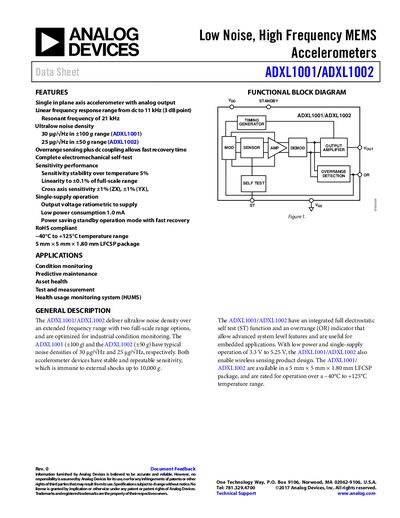

Data sheet for the Analog Devices ADXL1001 and ADXL1002 low noise, high frequency MEMS accelerometers with analog output.
The ADXL1001/ADXL1002 are single in-plane axis accelerometers featuring an integrated full electrostatic self-test function and overrange detection. They offer ultralow noise density (30 µg/√Hz for the ±100 g range and 25 µg/√Hz for the ±50 g range) with a linear frequency response from DC to 11 kHz.
| Noise Density (ADXL1001) | 30 µg/√Hz |
|---|---|
| Operating Voltage Range | 3.3 V to 5.25 V |
| Quiescent Supply Current (ADXL1001) | 1.0 mA |
| Operating Temperature Range | -40°C to +125°C |
The sensor has a resonant frequency of 21 kHz.
Yes, the output voltage is ratiometric to VDD.
