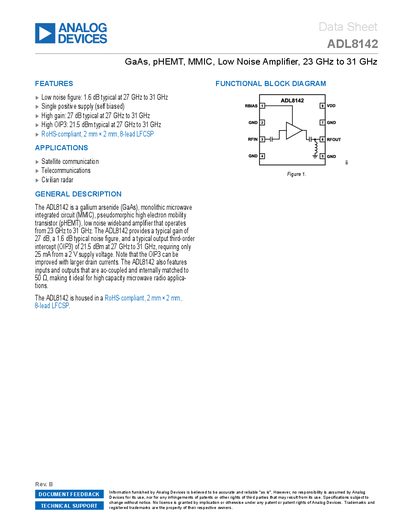

Technical data sheet for the ADL8142 GaAs pHEMT MMIC low noise wideband amplifier operating from 23 GHz to 31 GHz.
The Analog Devices ADL8142 is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC) pseudomorphic high electron mobility transistor (pHEMT) low noise wideband amplifier. It operates from 23 GHz to 31 GHz, providing a typical gain of 27 dB and a typical noise figure of 1.6 dB at frequencies between 27 GHz and 31 GHz.
| Frequency Range (23-27 GHz) | 23 to 27 GHz |
|---|---|
| Gain Variation over Temperature | 0.026 dB/°C |
| Noise Figure (23-27 GHz) | 1.8 dB typical |
| Supply Voltage (VDD) | 1.5 to 3.5 V |
| Quiescent Current (IDQ) | 25 mA typical |
| Output Power for 1 dB Compression | 8.5 dBm |
The device operates from 23 GHz to 31 GHz.
Yes, it is housed in a RoHS-compliant package.
