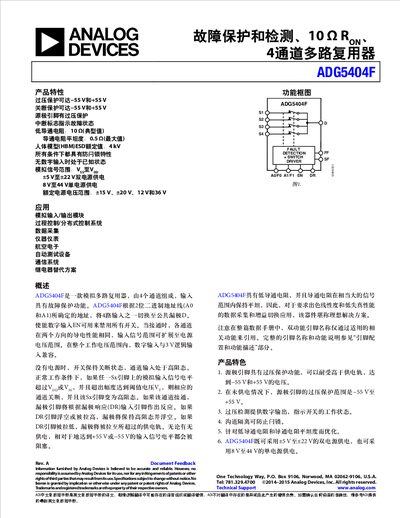

This datasheet describes the ADG5404F, a 4-channel analog multiplexer with fault protection and low on-resistance, suitable for data acquisition and process…
The ADG5404F is a 4-channel analog multiplexer designed with fault protection features. It switches one of four inputs to a common drain based on a 2-bit binary address. The device includes overvoltage protection on source pins, capable of withstanding voltages up to ±55 V even when unpowered. It features low on-resistance (typically 10 Ω) and resistance flatness, making it ideal for data acquisition and gain switching applications requiring high linearity. This manual is written in Chinese.
| HBM ESD Rating | 4 kV |
|---|---|
| Overvoltage Protection Range | ±55 V |
| Supply Voltage Range (Dual) | ±5 V to ±22 V |
| Supply Voltage Range (Single) | 8 V to 44 V |
| Number of Channels | 4 |
Yes, it has overvoltage protection up to ±55 V on source pins.
Yes, digital inputs are compatible with 3 V logic inputs under all operating conditions.
