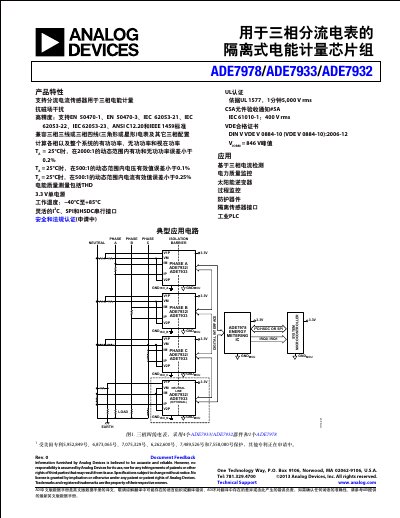

This datasheet details the Analog Devices ADE7978 and ADE7933/ADE7932 chipsets for three-phase energy metering using shunt current sensors.
The ADE7978 and ADE7933/ADE7932 form a dedicated chipset that uses shunts as current sensors for three-phase energy metering. The ADE7933 and ADE7932 are isolated 3-channel Σ-Δ ADCs suitable for applications using shunt current sensors, featuring integrated isoPower® isolated DC-DC converters based on iCoupler technology.
| Active Power Error (2000:1 dynamic range) | < 0.2% |
|---|---|
| Voltage RMS Error (500:1 dynamic range) | < 0.1% |
| Current RMS Error (500:1 dynamic range) | < 0.25% |
The chipset supports EN 50470-1, EN 50470-3, IEC 62053-21, IEC 62053-22, IEC 62053-23, ANSI C12.20 and IEEE 1459 standards.
The devices offer flexible I²C, SPI and HSDC serial interfaces.
