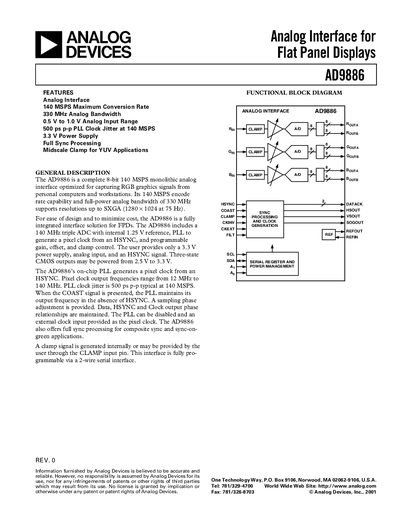

This datasheet describes the AD9886, an 8-bit 140 MSPS monolithic analog interface for capturing RGB graphics signals from PCs and workstations.
The AD9886 is a complete 8-bit 140 MSPS monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. It features a 140 MHz triple ADC with an internal 1.25 V reference and a PLL to generate a pixel clock from an HSYNC signal. The device supports resolutions up to SXGA (1280 × 1024 at 75 Hz) and is fully programmable via a 2-wire serial interface.
| Resolution | 8 Bits |
|---|---|
| Analog Input Range | 0.5 V to 1.0 V p-p |
| Supply Voltage | 3.3 V |
| Operating Temperature | -25 °C to +85 °C |
| Maximum Junction Temperature | 175 °C |
The device supports a maximum conversion rate of 140 MSPS.
The analog bandwidth reaches 330 MHz when operating at full power.
Analog input voltages must stay between 0.5 V and 1.0 V peak-to-peak.
