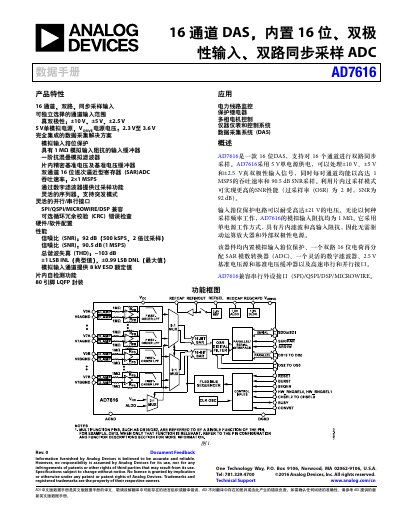

This datasheet describes the AD7616, a 16-bit dual-channel synchronous sampling data acquisition system (DAS) with true bipolar input and integrated digital…
The AD7616 is a high-performance 16-bit Data Acquisition System (DAS) designed for applications such as power line monitoring, protection relays, and motor control. It features dual-channel synchronous sampling of up to 1 MSPS per channel pair with true bipolar input ranges of ±10 V, ±5 V, or ±2.5 V selectable via software or hardware.
The device includes a fully integrated solution with internal precision reference voltage sources, buffer amplifiers for high-impedance inputs (1 MΩ), and an on-chip first-order anti-aliasing filter. It supports flexible digital filtering through oversampling modes to achieve SNR up to 93 dB and offers multiple serial interface options including SPI, QSPI, MICROWIRE, and DSP-compatible protocols. This manual is written in Chinese.
| Resolution | 16 Bits |
|---|---|
| Sampling Rate (per channel pair) | 1 MSPS |
| Signal-to-Noise Ratio (SNR) @ 500 kSPS | 92 dB |
| Total Harmonic Distortion (THD) | -103 dB |
| Input Impedance | 1 MΩ |
| Power Supply Voltage (VCC) | 4.75 V to 5.25 V |
| Drive Voltage (VDRIVE) | 2.3 V to 3.6 V |
| Number of Channels | 16 Channel |
The device supports true bipolar input ranges of ±10 V, ±5 V, and ±2.5 V.
The AD7616 is compatible with SPI/QSPI/MICROWIRE/DSP protocols.
The throughput rate is up to 1 MSPS for each channel pair.
