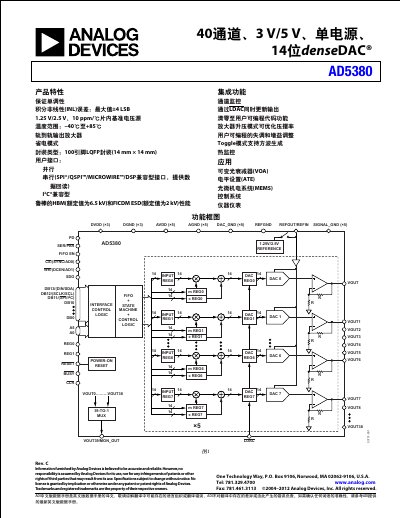

This datasheet describes the Analog Devices AD5380, a complete single-supply 40-channel 14-bit denseDAC with rail-to-rail output amplifiers.
The AD5380 is a complete single-supply, 40-channel, 14-bit denseDAC featuring 100-pin LQFP packaging. All 40 channels include an internal output amplifier operating in a rail-to-rail manner. The device incorporates a programmable 1.25 V/2.5 V reference voltage source with 10 ppm/°C accuracy and channel monitoring functionality that multiplexes analog outputs to a shared MON_OUT pin for external monitoring. This manual is written in Chinese.
| Resolution | 14 bit |
|---|---|
| INL Error (Max) | ±4 LSB |
| DNL Error (Max) | -1/+2 LSB |
| Reference Voltage | 1.25 V/2.5 V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 100-pin LQFP |
| Interface Types | Parallel, SPI/QSPI/MICROWIRE/DSP, I2C |
| Supply Voltage AVDD Range (AD5380-5) | 4.5 V to 5.5 V |
| Supply Voltage DVDD Range (AD5380-5) | 2.7 V to 5.5 V |
The maximum integral nonlinearity (INL) error is ±4 LSB.
Yes, all 40 channels have an internal rail-to-rail output amplifier.
The device supports parallel, SPI/QSPI/MICROWIRE/DSP compatible serial, and I2C compatible interfaces.
