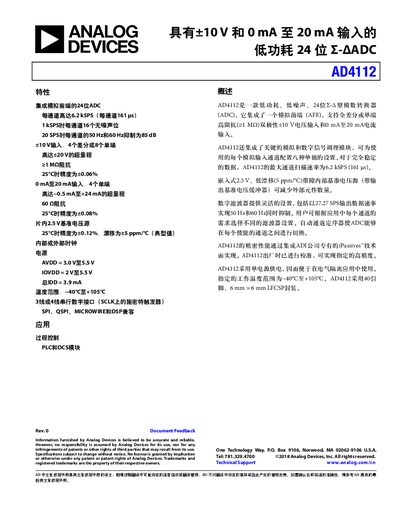

This datasheet details the AD4112, a low-power, low-noise 24-bit sigma-delta ADC with integrated AFE for voltage and current inputs.
The AD4112 is a low-power, low-noise, 24-bit sigma-delta analog-to-digital converter (ADC) that integrates an analog front end (AFE). It supports fully differential or single-ended high-impedance (≥1 MΩ) bipolar ±10 V voltage inputs and 0 mA to 20 mA current inputs. The device features an embedded 2.5 V, low-drift bandgap internal reference voltage source and a digital filter providing flexible settings, including simultaneous 50 Hz and 60 Hz suppression at a 27.27 SPS output data rate. This manual is written in Chinese.
| Resolution | 24-bit |
|---|---|
| Input Current Range | 0 mA to 20 mA |
| Supply Voltage AVDD | 3.0 V to 5.5 V |
| Operating Temperature Range | -40°C to +105°C |
| Package | 40-lead 6 mm x 6 mm LFCSP |
| Internal Reference Voltage | 2.5 V |
| Total Supply Current (IDD) | 3.9 mA |
The maximum channel scan rate is 6.2 kSPS.
Yes, it provides 85 dB suppression for both 50 Hz and 60 Hz at 20 SPS.
The accuracy is ±0.12% at 25°C.
