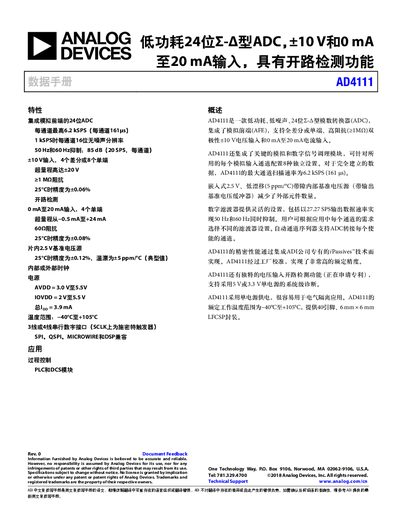

This datasheet details the Analog Devices AD4111, a low-power, low-noise 24-bit sigma-delta ADC with integrated AFE for voltage and current inputs.
The AD4111 is a low-power, low-noise, 24-bit Sigma-Delta analog-to-digital converter (ADC) that integrates an analog front end (AFE). It supports fully differential or single-ended, high-impedance bipolar ±10 V voltage inputs and 0 mA to 20 mA current inputs. The device features a maximum channel scan rate of up to 6.2 kSPS per channel. This manual is written in Chinese.
| Resolution | 24-bit |
|---|---|
| Max Channel Scan Rate | 6.2 kSPS per channel |
| Voltage Input Range | ±10 V differential |
| Current Input Range | 0 mA to 20 mA |
| Supply Voltage AVDD | 3.0 V to 5.5 V |
| Operating Temperature Range | -40°C to +105°C |
| Package Type | 40-pin LFCSP |
The maximum channel scan rate is up to 6.2 kSPS per channel.
Yes, it includes an on-chip 2.5 V bandgap reference voltage source.
The initial accuracy of the internal reference is ±0.12%.
