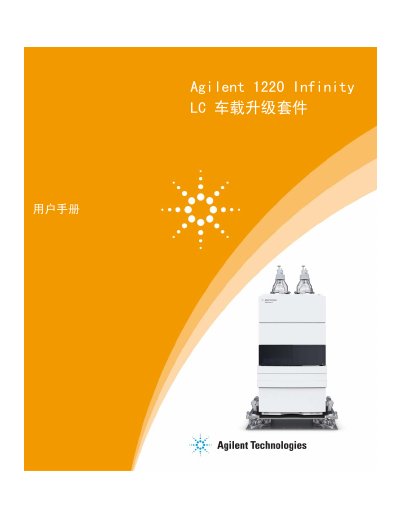

This manual provides installation, specifications, and operation instructions for the Agilent 1220 Infinity LC mobile upgrade kit.
The Agilent 1220 Infinity LC mobile upgrade kit enables the 1220 Infinity LC liquid‑chromatography system to be installed in a mobile laboratory for field sample analysis. The kit includes a shock‑absorbing unit, solvent bottle holder, and a column‑holding mesh to protect the instrument during transport and operation.
The manual covers site requirements, detailed installation steps, safety warnings, and general operating procedures. It specifies the required workspace dimensions, mounting hardware, and provides guidance on securing the solvent bottles and column assembly. This manual is written in Chinese.
| Shock‑absorbing unit footprint | 480 mm × 445 mm (18.9 in × 17.5 in) |
|---|---|
| Overall required workspace | 560 mm × 665 mm × 970 mm (22.1 in × 26.2 in × 38.2 in) |
| Mounting hole diameters on shock‑absorbing base | 8.5 mm (0.33 in) and 20 mm (0.79 in) |
| Maximum screw load per fastener | ≈ 2000 N |
The manual warns that improper operation can cause personal injury, death, or loss of important data, and it emphasizes the need to follow all caution and warning symbols.
The kit includes a solvent‑bottle unit that fixes the bottles to the instrument, and a dedicated solvent rack protects the bottles during operation.
