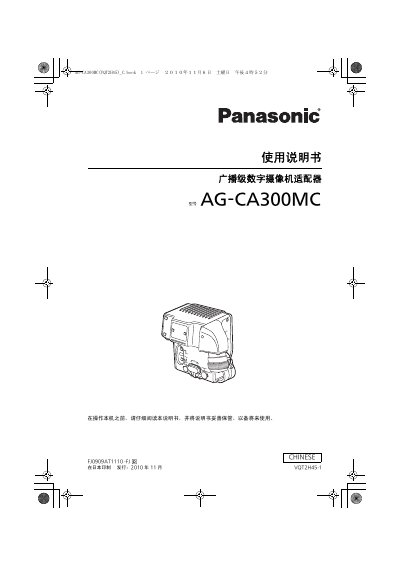

AG AG-CA300MC Broadcast Digital Camera Adapter User Manual

About this manual

The AG AG-CA300MC is a broadcast digital camera adapter that connects to a base station (AG-BS300MC) via a power cable and BNC cables. It transmits uncompressed video and audio signals, allowing for extended transmission distances of up to 100m when using the recommended 5C-FW cable.

The device supports various camera models including AJ-HPX3700MC, AG-HPX500MC, and others. Key features include the ability to transmit one return video (RET) signal, one intercom call (INCOM), and DC power operation. The manual details installation steps for the battery board and BT-LH80W/WU monitor, as well as system configuration settings. This manual is written in Japanese.

What's inside

• Safety Information
• Attachments
• System Configuration Diagram
• Precautions for Connecting Systems
• Installing the Camera
• Component Names and Functions
• About RET Signal
• Installing to the Camera
• Fixing Interface Covers
• Specifications

Specifications

Frequently asked questions

What is the maximum transmission distance between the device and base station?

The maximum distance is up to 100m when using a 5C-FW BNC cable.

Can the device transmit return video and intercom signals?

Yes, it can transmit one return video (RET) signal and one intercom call (INCOM).
