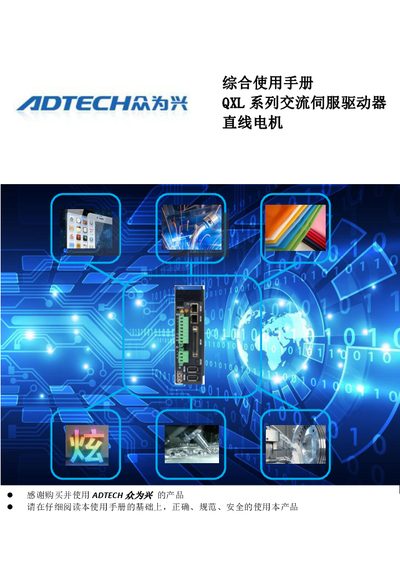

ADTECH QXL Series AC Servo Drive Comprehensive Use Manual

The ADTECH QXL series AC servo drive manual provides safety guidelines, installation, wiring, debugging, and maintenance instructions for the drive.

Brand: Adtech
Category: Automation control Equipment
Document type: User Manual
Language: Chinese
Pages: 240
File format: PDF
File size: 15.2 MB
Published: 30 September, 2026
Updated: 30 September, 2026
MD5 checksum: 3BC5F381E8FA648899076282D68AB24F
PDF: ADTECH QXL Series AC Servo Drive Comprehensive Use Manual PDF

About this manual

This manual explains safe handling of the QXL series AC servo drive, including required grounding, power‑off procedures, and warnings about hazardous environments. It emphasizes that only qualified personnel should perform installation, wiring, and maintenance.

The document covers product identification, specifications, mechanical dimensions, installation requirements, wiring diagrams for all ports, and detailed instructions for using the QX PC Suite debugging software to configure parameters, protection settings, and I/O functions. This manual is written in Chinese.

What's inside

Product Confirmation
Product Specification Identification
Product Description
Preparation
Drive Installation Environment
Cable Installation and Wiring Considerations
Drive Wiring Instructions
QX PC Suite Debugging Software

Specifications

Model	QXLH02NT01-B
Output Continuous Current	2 A
Input Voltage (Standard Power)	AC 220 V
Input Voltage (High Power)	AC 380 V
Control Method	IGBT PWM
Communication Protocol	RS485 Modbus
I/O Inputs	10

Frequently asked questions

How can the servo drive be protected from over‑current and other faults?

Install over‑current protection devices, leakage switches, over‑heat protection, and an emergency‑stop device, and configure protection parameters in the QX PC Suite software.

Which software is used to configure and debug the QXL servo drive?

The QX PC Suite debugging software is used for parameter configuration, firmware upload/download, and protection settings.
