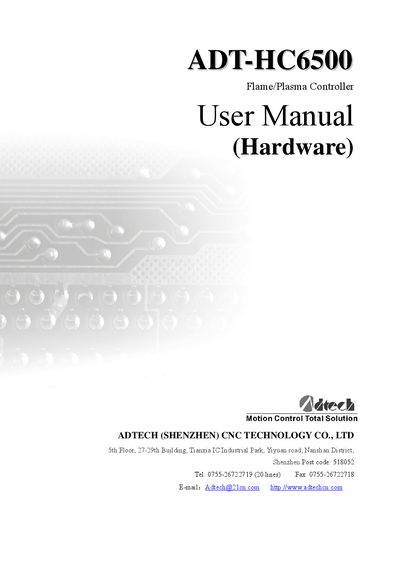

This document is the user manual of ADT-HC6500 Flame/Plasma/Fluid Controller, which mainly introduces the features and usage methods of the product.
The ADT-HC6500 is a flame, plasma and fluid controller designed for multi‑axis cutting and motion control. This manual provides safety notices, functional introductions, hardware specifications, wiring diagrams and maintenance procedures for both the A and B series models.
Key sections include safety guidelines, controller features, detailed electrical connections, specifications, environmental limits, and an annex describing the optional keyboard interface.
| Digital input channels | 44 (photovoltaic isolation) |
|---|---|
| Digital input voltage | 12‑24 V |
| Isolation voltage | 2500 V DC |
| Maximum pulse frequency | 2 MHz |
| Power supply range | 88‑264 VAC, 125‑373 VDC |
| Operating temperature | -10 °C to 50 °C |
The controller provides 44 digital input channels, all with photovoltaic isolation.
The pulse output can operate up to 2 MHz.
