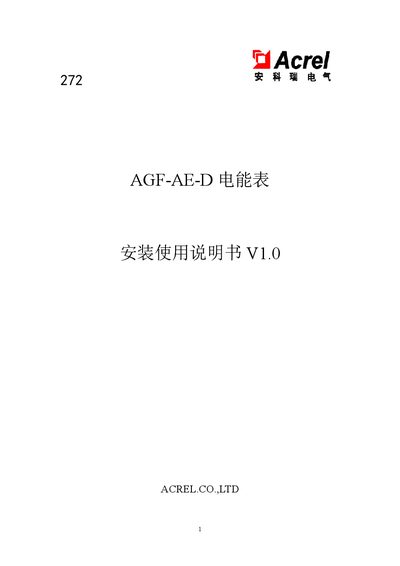

This manual provides installation guidelines, safety instructions, technical specifications, and wiring diagrams for the ACREL AGF-AE-D energy meter.
The document serves as an installation and user guide for the ACREL AGF-AE-D single-phase or three-phase energy meter. It covers essential safety warnings regarding high voltage and internal components, along with step-by-step instructions for mounting the device on a DIN rail and connecting power lines, current transformers (CTs), and RS485 communication cables. This manual is written in Chinese.
| Rated Voltage (Line-to-N) | 120 V |
|---|---|
| Rated Voltage (Line-to-Line) | 208/240 V |
| Communication Interface | RS 485 |
| Response Time | ≤1 S |
| Accuracy Class | ±0.5 / ±1 % |
| Operating Temperature Range | -30~55 ℃ |
The meter should be installed on a 35mm DIN standard rail.
Connect A+ to terminal 1, B- to terminal 2, and the shield to terminal G on the 4-pin connector.
