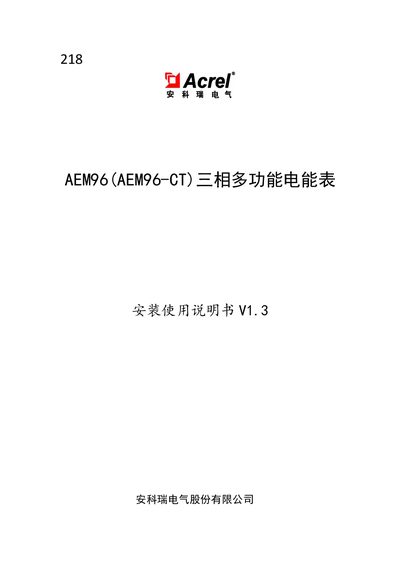

This manual covers the installation, operation, and technical specifications of the Acrel AEM96(AEM96-CT) three-phase multifunctional energy meter for power…
The Acrel AEM96 and AEM96-CT three-phase multifunctional energy meters are intelligent devices designed for power statistics and management in power systems, industrial enterprises, and public facilities. They integrate three-phase power parameter measurement, energy metering, and assessment management, providing energy data statistics for the last 24 hours, 31 days, and 12 months. Both models comply with the national standard GB/T 17215.322-2008 and the MODBUS-RTU protocol. This manual is written in Chinese.
| Accuracy Class | 0.2S (Active Energy), 2 (Reactive Energy) |
|---|---|
| Voltage Range | 0.7Un~1.3Un |
| Current Range | 3×1.5(6)A |
| Frequency Range | 45～65Hz |
| Harmonic Detection | 2～31 times |
| Communication Protocol | Modbus RTU or DL/T645-2007 |
| Operating Temperature | -20℃~+60℃ |
| Power Supply | AC85V-265V, DC100-375V |
It complies with GB/T 17215.322-2008 and MODBUS-RTU requirements.
The meter can detect harmonics from the 2nd to the 31st order.
It supports three-phase four-wire and three-phase three-wire connections via current transformers, or via voltage and current transformers.
