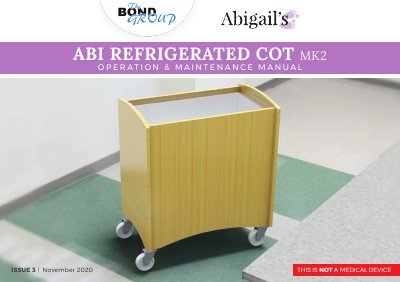

The Abi MK2 Refrigerated Cot Operation & Maintenance Manual provides setup, cleaning, service, and technical specifications for safe use.
This manual describes the general information, handling, transport, installation, and service instructions for the Abi MK2 Refrigerated Cot. It explains start‑up and shut‑down procedures, safety notes, and the required supervision by a qualified bereavement midwife.
Technical data such as refrigeration specifications, electrical requirements, and controller settings are listed, along with a detailed spare‑parts list and cleaning guidelines to keep the cot operating within the required temperature range of –1 °C to +4 °C.
| Refrigerant Charge | 270 g |
|---|---|
| Refrigerant Type | R134A |
| Compressor | Embraco EMT6144Z |
| Compressor Power | 322 W / 1.4 A |
| Fan Power | 10 W / 0.04 A |
| Maximum Running Load | 332 W / 1.44 A |
| Temperature Range | -1 °C to +4 °C |
| Maximum Design Ambient Conditions | 25 °C, 60 % RH |
| Controller | LAE AT1-5 |
| Colour | Light Winchester Oak |
