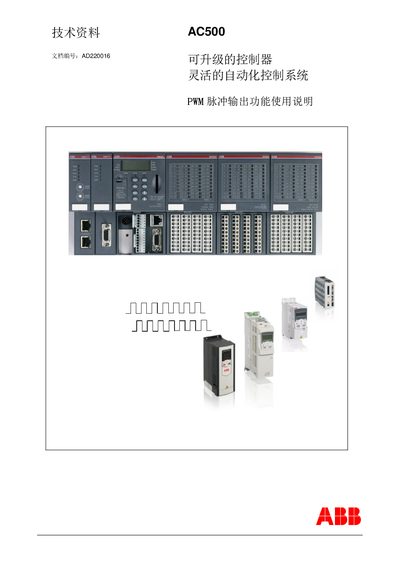

This manual explains how to implement PWM functions on the ABB AC500 controller using CD522, eCO integrated I/O, and DC541 modules to control stepper motors…
This document provides instructions for implementing Pulse Width Modulation (PWM) functionality on the ABB AC500 series controller. It serves as a training example and is not intended for direct use in actual engineering designs without further validation. The guide assumes the user has prior knowledge of the AC500 PLC system, Control Builder Plus, CoDeSys programming, and ASCII communication. This manual is written in Chinese.
| Output Voltage | 24 V DC |
|---|---|
| Max Output Current | 100 mA |
| Frequency Range | 1 Hz to 100 kHz |
| Duty Cycle Range | 0 to 100 % |
It guides users on how to implement PWM functions on the AC500 series CPU to control stepper motors or servo controllers.
No, this example is for training purposes only and cannot be directly used in actual engineering designs.
The system requires the PM573-ETH V 2.2, PS501: V 2.2, PM554 -T V2.2, CD522, and DC541 modules.
