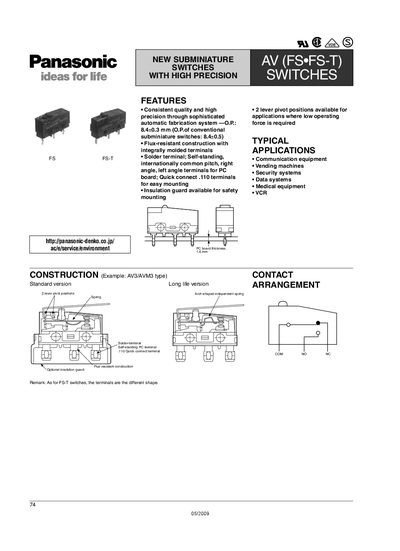

This document describes the features and characteristics of the new AV3,AVM3/AVT3,AVL3 74 subminiature switches with high precision AV (FS•FS-T) switches, including consistent quality and high precision, flux-resistant construction, various terminal options, installation protection measures, and multiple lever pivot positions. It is suitable for applications in communication equipment, vending machines, security systems, data systems, medical equipment, and VCRs.
Panasonic’s FS FS‑T series are new sub‑miniature switches with high precision and flux‑resistant construction. They offer a variety of terminal options, including solder, self‑standing PC, right‑angle, left‑angle, and .110 quick‑connect terminals, as well as optional insulation guards for safety.
The document lists ordering codes, electrical and mechanical characteristics, recommended mounting and soldering procedures, and environmental cautions. Typical applications include communication equipment, vending machines, security systems, data systems, and medical equipment.
| Contact rating (AC) | 125 V AC 3 A |
|---|---|
| Electrical life (rated load) | 5 × 10⁴ cycles at 20 cpm |
| Mechanical life | 5 × 10⁸ cycles at 60 cpm |
| Insulation resistance | ≥ 100 MΩ at 500 V DC |
| Dielectric strength (non‑continuous terminals) | 1 000 Vrms |
| Ambient temperature range | -25 °C to +85 °C |
| Unit weight | ≈ 2 g |
Use flat filister head M2.3 screws with less than a 0.29 N‑m torque.
Manual soldering should be completed in less than 3 seconds using a 60 W iron.
Set the over‑travel to more than 70 % of the standard travel.
