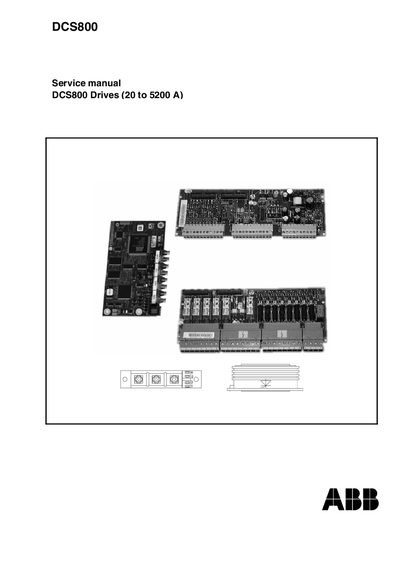

The ABB DCS800 Service Manual contains detailed safety instructions, installation guidelines, and maintenance procedures for the DCS800 series of drives and converter modules. It covers warnings for qualified personnel, proper grounding methods, handling of printed circuit boards and fiber‑optic cables, and includes a spare parts list.
The manual also presents technical data for the DCS800 family, including current and voltage ratings for various modules, and provides information on enclosure extensions, panel solutions, and rebuild kits. It is intended for engineers, electricians, and service technicians working with ABB DC drives.
| Maximum Current Rating | 20,000 A |
|---|---|
| Maximum Voltage Rating | 1,600 V |
Only qualified electricians are allowed to install and maintain the drive, and work must never be performed while the main power is applied.
