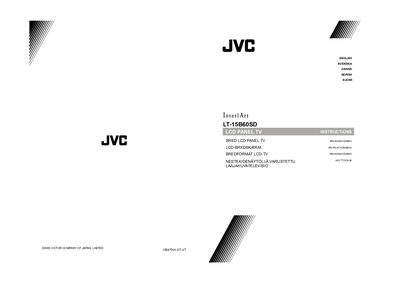

This file is an instruction manual that introduces the use of LT-15B60SD, including function introduction and use precautions
This manual explains how to safely install, mount, and use the JVC LT-15B60SD LCD TV. It includes safety warnings, power‑connection instructions, and guidance for adjusting the stand or wall‑mount.
The guide also covers remote‑control functions, picture and sound settings, PC and video inputs, and detailed technical specifications such as broadcasting standards, power consumption, and dimensions.
| Broadcasting Systems | PAL SECAM BG, DK, L, Lp |
|---|---|
| Panel Size | 15" (381 mm) measured diagonally |
| Visible Picture Size | 304 mm × 228 mm |
| Display Resolution | 1024 × 768 (max, XGA) |
| Power Requirements | Adaptor 100‑240 V AC, 50 Hz / TV 12 V DC |
| Power Consumption (max) | 41 W (stand‑by < 3 W) |
| Audio Output | 2 × 3 W (≤10 % THD) |
| Dimensions (W × H × D) | 489 mm × 353 mm × 183 mm |
| Weight | 7.5 kg (with stand) / 6.0 kg (TV only) |
| Accessories | Remote control unit, 2 dry‑cell batteries, AC adaptor, power cord |
Check that the TVVCR/DVD switch is set to the TV position.
Use a slightly damp, soft cloth and avoid abrasive solvents, which can damage the screen coating.
Make sure the D‑SUB cable is connected correctly and that the PC’s resolution is set to a supported mode.
