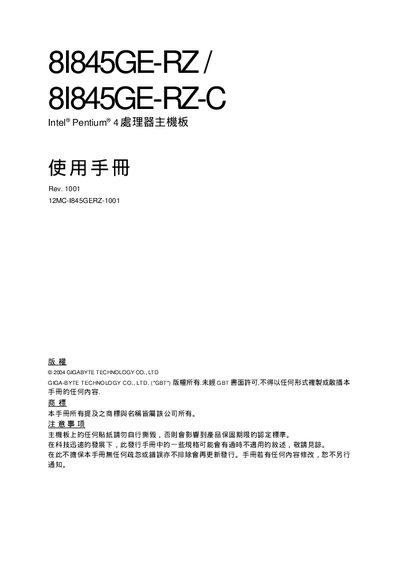

This document is the user manual for 8I845GE-RZ / 8I845GE-RZ-C motherboard, which introduces the specifications and configuration of the motherboard, as well as the steps for installation and BIOS settings.
This manual covers the layout and installation of the Gigabyte 8I845GE-RZ motherboard, including CPU socket, memory slots, expansion slots, and power connections. Detailed diagrams and part numbers help with assembly and troubleshooting.
Additional sections describe BIOS configuration, peripheral connectors such as USB, audio, and network ports, as well as recommended system settings for optimal performance with Intel® Pentium 4 processors. This manual is written in Chinese.
| CPU Socket | Socket 478 |
|---|---|
| Supported CPUs | Intel® Pentium® 4 (Northwood, Prescott) |
| Front Side Bus | 400 MHz / 533 MHz |
| AGP Slot | AGP 4X (1.5 V) |
| USB Ports | 2 USB 2.0/1.1 ports |
| Audio Codec | C‑Media 9761A |
It uses a Socket 478 processor socket.
Two USB 2.0/1.1 ports are available.
A C‑Media 9761A audio codec is integrated.
